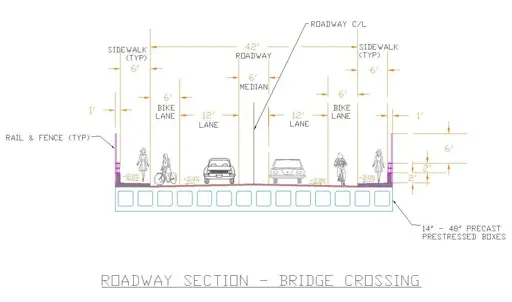

i never knew a roadway engineering drawing could be so lesbian, but i guess the same thing could be said about my city itself hehe
like truly, the women where i live are THE kind of people who absolutely would make random stuff in the color palette of the lesbian flag
in meters:
Not Just Bikes has permanently altered my brain because the only thing I can think of is how much I’d change in this setup. Remove the median, decrease the lane width by one quarter (seeing it in meters, those are fucking huge), use the space to extend the sidewalks and add civil infrastructure (trash bins, benches, illumination), make the bike lanes grade-separated, and add traffic calming features (it’s a bridge, not a race track).
